Skived PTFE with acrylic adhesive. This tape is used primarily for down-hole cable splicing which requires good adhesive strength at elevated temperatures. Film thickness .005 – Adhesive thickness .002
1″x 10yds with liner
1″x18yds no liner or with liner .

FEP  with silicone adhesive. This tape is used primarily in electrical applications including capacitor insulation and cable termination insulation. Film thickness .002 – clear Adhesive thickness .0015
1″x10yds with liner
1″x 18yds no liner or with liner
1″x36yds no liner or with liner

White PTFE sintered with no adhesive. This tape is used primarily as a tie-in tape for leads in a submersible pump motor. Film thickness .005. 1″x 36 yds.

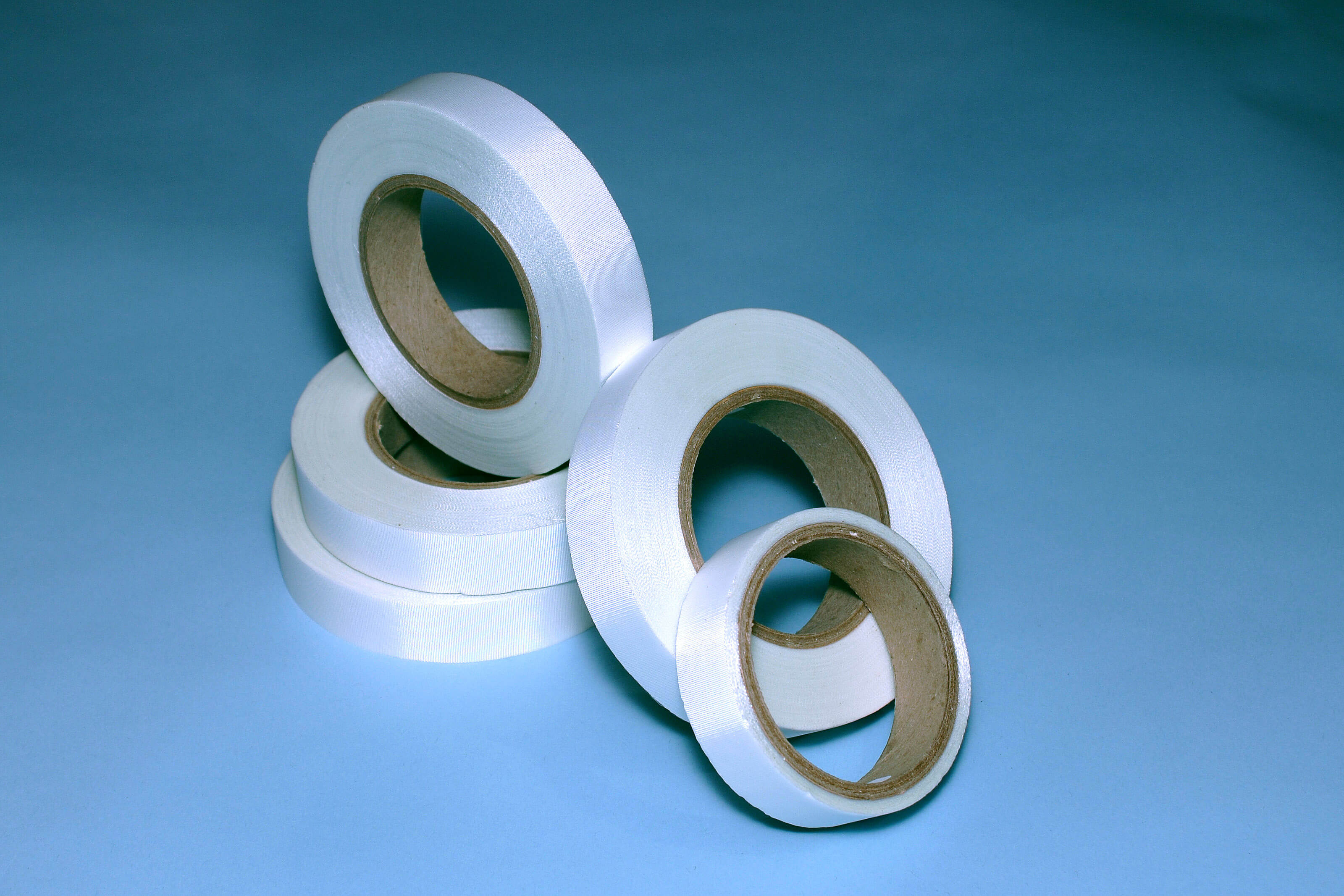

Woven fiberglass double-sticky tape with silicone adhesive on both sides. This double-sticky tape is used primarily as an outer wrap on a cable splice. Thickness .0065-.0075. 1″x 18yds.

Woven fiberglass tape (“E” type) with acrylic adhesive. This tape is used primarily as an outer wrap on a cable splice. Thickness .007. 1″x10yds and 1″x60yds

3M Glass Cloth Tapes

White glass cloth with acrylic adhesive. This tape is used primarily as the outer wrap on a cable splice. Thickness .007. 1″x60yds.

White glass cloth with silicone adhesive. This tape is used primarily as the outer wrap on a cable splice. Thickness .007. 1″ x 36yds.

White glass cloth with a rubber adhesive. This tape is used as the outer wrap or filler on a cable splice. Thickness .007. 1″x 60yds.

Polyester film / glass filament with acrylic adhesive. This tape is used primarily as a holding tape in oil filled transformer coils. Thickness .065. ¼”, ½”, ¾” x 60yds.

3M Rubber & Vinyl Splicing Tapes

Linerless rubber tape for low and high voltage( thru 69kV). Thickness .030. ¾” x 30ft.

Heavy duty, flame retardant, weather resistant for electrical insulation. Thickness .0085. ¾” x 66f

Ethylene Propylene Rubber (EPR) with liner. High voltage, self-fusing, insulating tape. Thickness .030. 1″ x 30ft.

Highly conformable, super stretchy premium vinyl. Flame retardant, weather resistant. Primary insulation for splices up to 600V. Thickness .007. ¾” x 66ft.

Sizes:
.011″ x 1″ x 36 yds Style# 308
.011 x ¾” x 36 yds Style# 306
.007 x 1″ x 36 yds Style# 768
.007″ x 3/4″ x 36 yds Style# 7866
.007 x 1-1/2″ x 36 yds Style #64312
.011 x 1-1/2″ x 36 yds Style #3012

Non-adhesive woven fiberglass tape
Sizes:

.007 x 1″ x 36 yds Style# 4578-1
.005 x 1″ x 36 yds Style# 7558-1
.007 x 1-1/2″ x 36 yds Style# 75712-1
.007 x 1″ x 36 yds Style# 7578-1

Non-adhesive Lead (Pb) Foil tape. Thickness .005. 1″x36″ or 1″x48″.

Non-adhesive Lead (Pb) Sheet. Thickness 1/16:x25’x3′ or 1/32″x5’x10

Sizes:
50NOF17W, Flat braided nylon lacing tape, Type I, Mil-T-43435, size 3
60LOF13A, Flat braided Tefglass, Type IV, Mil-T-43435, size 4
15TOF13X, Flat braided, Type III, Mil-T-43435, size 4
Other sizes and types also available
